1 . 1 automatic press, mod. Pmp for short cut:
Automatic press mod.pmp zle/z for the production dt 3.200 kg/h of short cur, full of dorage group, premixer, kneader tank, distributor tank, extrusion group composed by 2 compression screw with 21.8 mm. Diameter and 2 cylinder head with 540 mm. Diameter. All kneading and extrusion operation happen in vacuum.

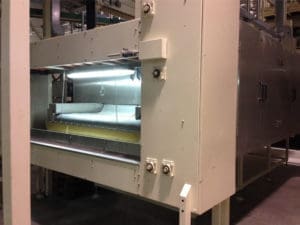

- shaker pre-dryer with network structure in stainless steel, kinematic made with metal bars spring , adjust of the speed of advance product.
1.3 bucket elevator
Bucket elevator in network ring , exhaust distributed
Painted carbon steel structure. Device made up of additional ring chains and rollers to avoid loss of product in the loading. Moving through three-phase asynchronous motor . Overtourning group in the area of discharge.
1.4

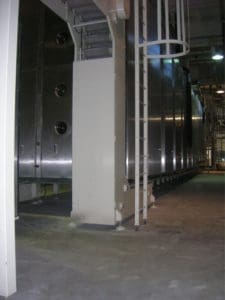

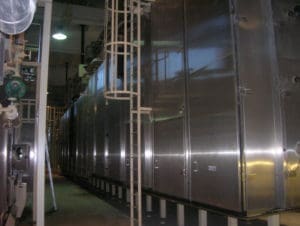

Short cut dryer with thermo-active system technology, fast drying process with discovery active and high energy efficiency . Structure in stainless steel .
1.5 bucket elevator
2 bucket elevator made of stainless steel network, central exhaust path.

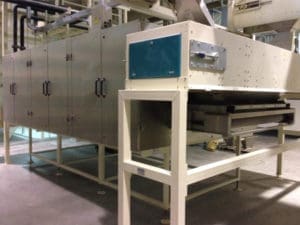

1.6 cooler shaker pre-dryer
Short cut cooler shaker pre-dryer made up by 5+5 piatti vibratory plate compacotrs with stainless steel network, kinematic made with metal spring auction, complete with charging product system.

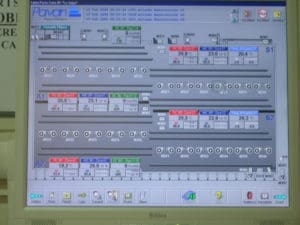

1.7 computerized electrical control system
Carbon steel sheet electrical control and command system ral 7032 color painted full of electrical circuits designed and made up according to standards applicable cet . System based on programmable logic controller connected to personal computer as interface that allows the complete management of all automated process. Technical and tachnological assistance made by remote station through modem, public telephone network and plc equipped system.
